RB22 Crash Barrier Accessories

RB22 Crash Barrier
Hire from£6.50ex. VAT
Buy from£306.00ex. VAT
- Height 800mm
- Depth 500mm
- Width 2000mm
- Weight 60kg
- Filled Weight 600kg
RB22 Mesh Panels
Hire from£1.25ex. VAT
Buy from£40.17ex. VAT
- Height 1400mm
- Depth 40mm
- Width 1863mm
- Weight 8.7kg
RB22 Half Hoarding & Half Mesh Panels
Buy fromPOA
- Height 1400mm
- Depth 40mm
- Width 1863mm
- Weight 17kg
RB22 Hoarding Panels
Hire from£1.70ex. VAT
Buy from£80.86ex. VAT
- Height 1400mm
- Depth 40mm
- Width 1863mm
- Weight 25kg
RB22 & GB2 Barrier Hoard
Buy from£137.20ex. VAT
- Height 1400mm
- Depth 102mm
- Width 2060mm
- Weight 25kg
RB22 Mesh Extension Panels
Hire from£1.40ex. VAT
Buy from£32.83ex. VAT
- Height 620mm
- Depth 38mm
- Width 1863mm
- Weight 8kg

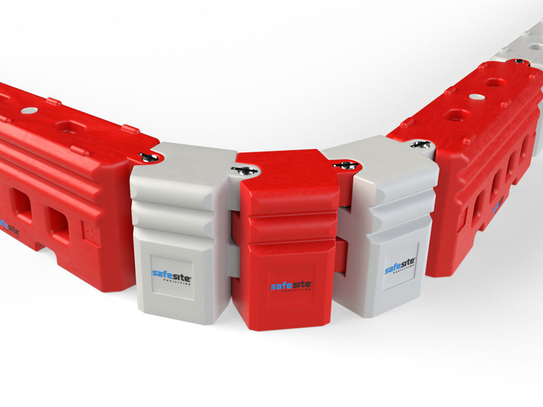

RB22 Angle Barrier
Hire fromPOA
Buy fromPOA
- Height 800mm
- Depth 500mm
- Width 680mm
- Weight 12kg
- Filled Weight 167kg

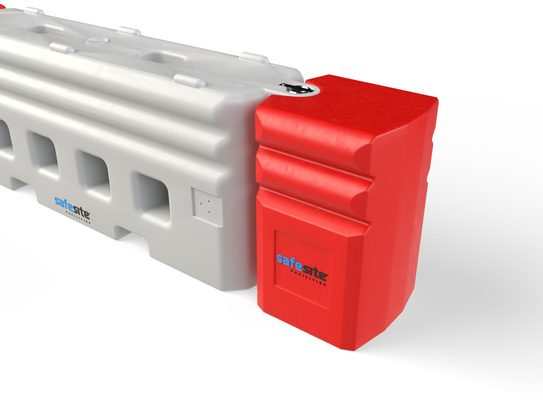

RB22 Barrier End Stop
Hire fromPOA
Buy fromPOA
- Height 800mm
- Depth 500mm
- Width 680mm
- Weight 12kg
- Filled Weight 167kg

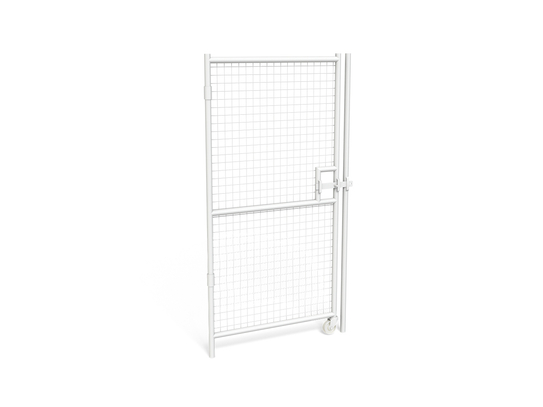

Water Filled Barrier Pedestrian Gate
Temporary Heras Pedestrian Gate
Hire from£2.40ex. VAT
Buy from£62.00ex. VAT
- Height 2000mm
- Depth 38mm
- Width 1151mm
- Weight 14.4kg
4m Bi-folding Vehicle Access Gate
Buy from£872.09ex. VAT
- Height 2000mm
- Depth 40mm
- Width 4000mm
- Weight 68kg
Temporary Heras Vehicle Access Gates
Hire from£5.00ex. VAT
Buy from£140.00ex. VAT
- Height 2000mm
- Depth 38mm
- Width 4261mm
- Weight 31.15kg

Options for the RB22 Barrier

RB22 Barrier
800mm Total Height
RB22 Panels
2255mm Total Height
RB22 Panels + Extension
2875mm Total Height

RB22 Water Filled Barrier Installation Guide

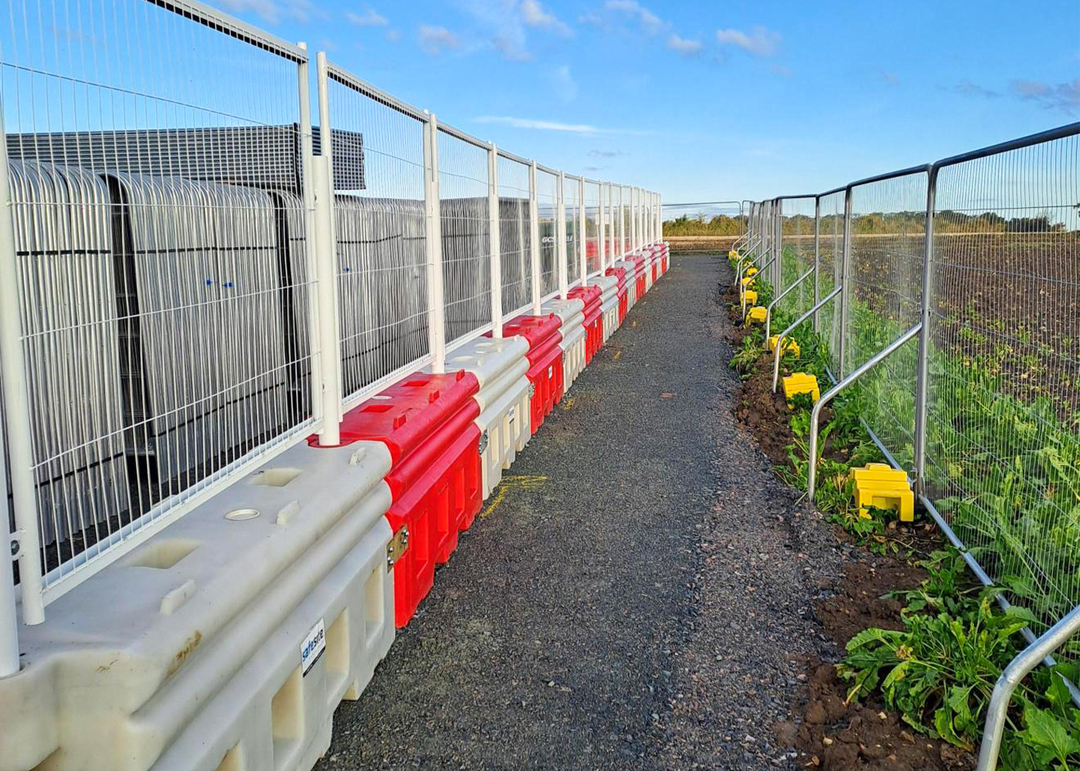

Mesh Fencing

Our anti-climb mesh fence panels allow for professional, obscured view of your site whilst keeping intruders out.
When fitted to the RB22, this above ground, stable solution can with stand wind speeds of up to 77.8mph. The mesh panels can be supplied in a powder coated or galvanised finish. As with the hoarding panels, the mesh panels are fixed in place with a vertical pin and the barriers are screwed together using a metal fixing plate.

Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 77.8mph
White powder coated or galvanised finish

FIND OUT MORE

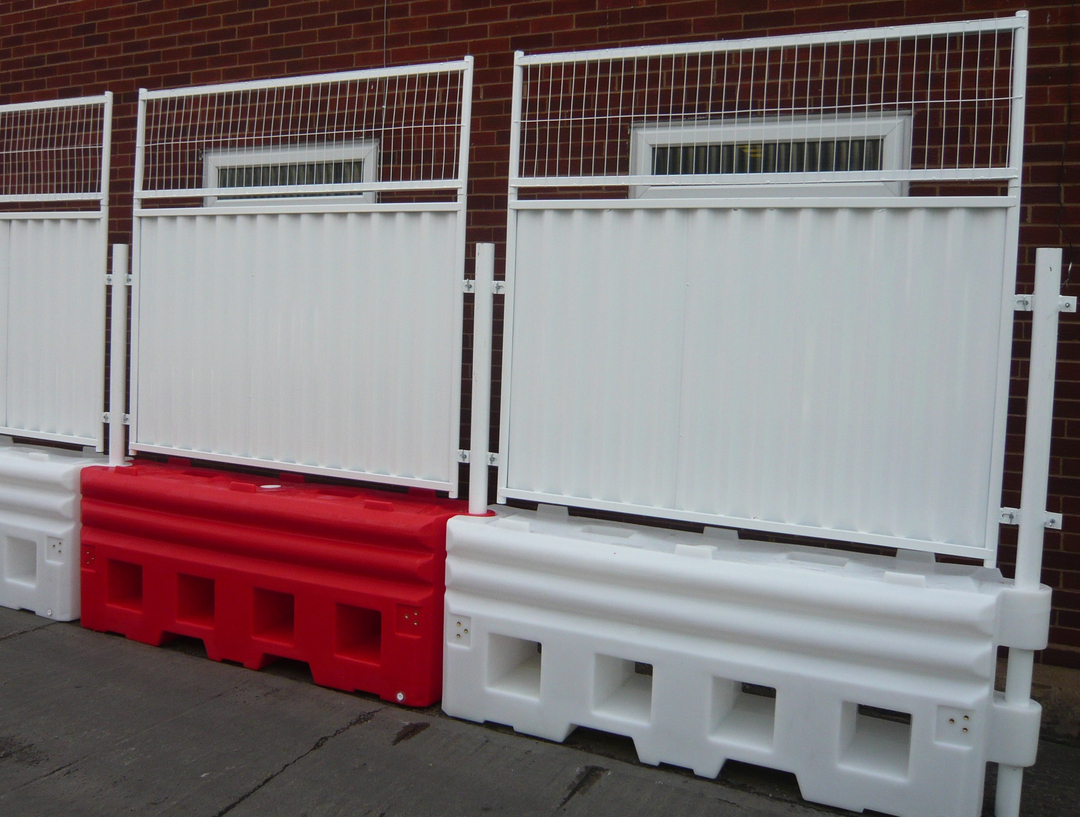

Hoarding Panels

Hoarding is an excellent way to add privacy and protection quickly and easily. The RB22 can be used as a solid, above-ground base onto which you can fit hoarding panels. The panels slot easily into the ends of the barriers and are fixed in place with steel pins.

Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 44mph
White powder coated or galvanised finish
Infill panels available

FIND OUT MORE

Half Hoarding & Half Mesh Panel

Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 60mph
White powder coated or galvanised finish
Infill panels available

FIND OUT MORE

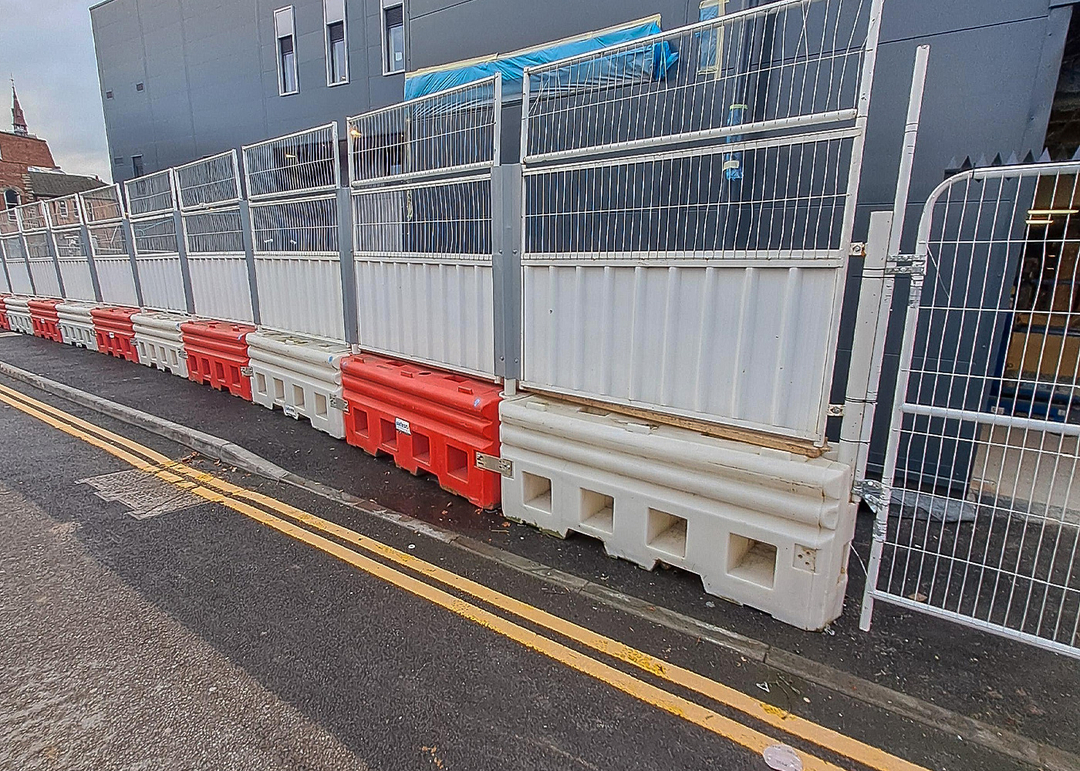

rb22 barriers connected with half hoarding, half mesh fencing panels and mesh extension panel above for extra height

Vehicle & Pedestrian Gates

It is possible to install both a vehicle and pedestrian access point in our RB22 Barrier system. With the simple addition of an adaption pole, a flagpole can be used to fix a range of gate sizes and types to the RB22 system.

Just as we can offer with the perimeter solution, we can offer steel hoarding, mesh panels and hybrid (mesh/hoarding panels), to suit your site whatever the location, weather, or nature of your site needs.

The gates are secured in position using ballast blocks which are highly durable and purpose-built for outdoor sites including muddy and uneven surfaces. The simple and easy installation of the gates means that they are quick to install, secure and straight-forward to update.

RB22 Barriers connected with bifolding gate

Wind Tested

The RB22 Barrier has been tested in the MIRA wind tunnel, and achieved multiple Class A passes.

On its own, the RB22 can withstand speeds of up to 78 mph. The level of wind resistance offered by this temporary solution depends on the level of mesh you incorporate into the system. You can adjust the level of mesh and solid panel hoarding you use, according to the different wind load speeds and requirements of your site.

Class A/ 78mph

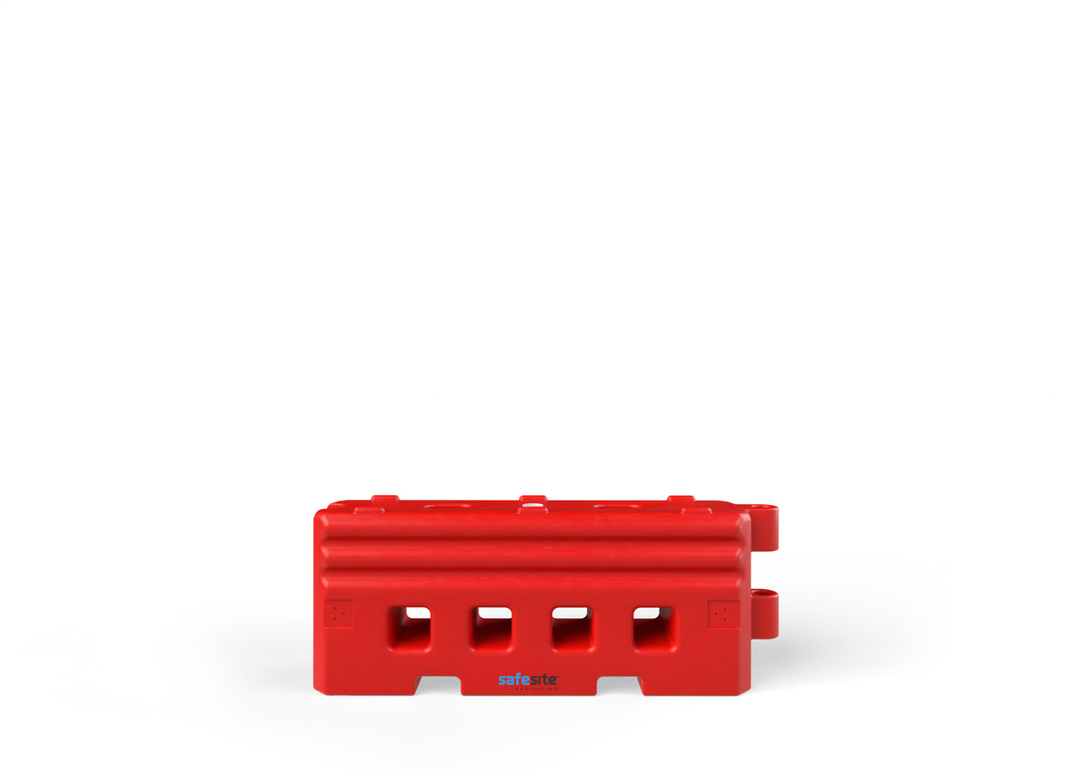

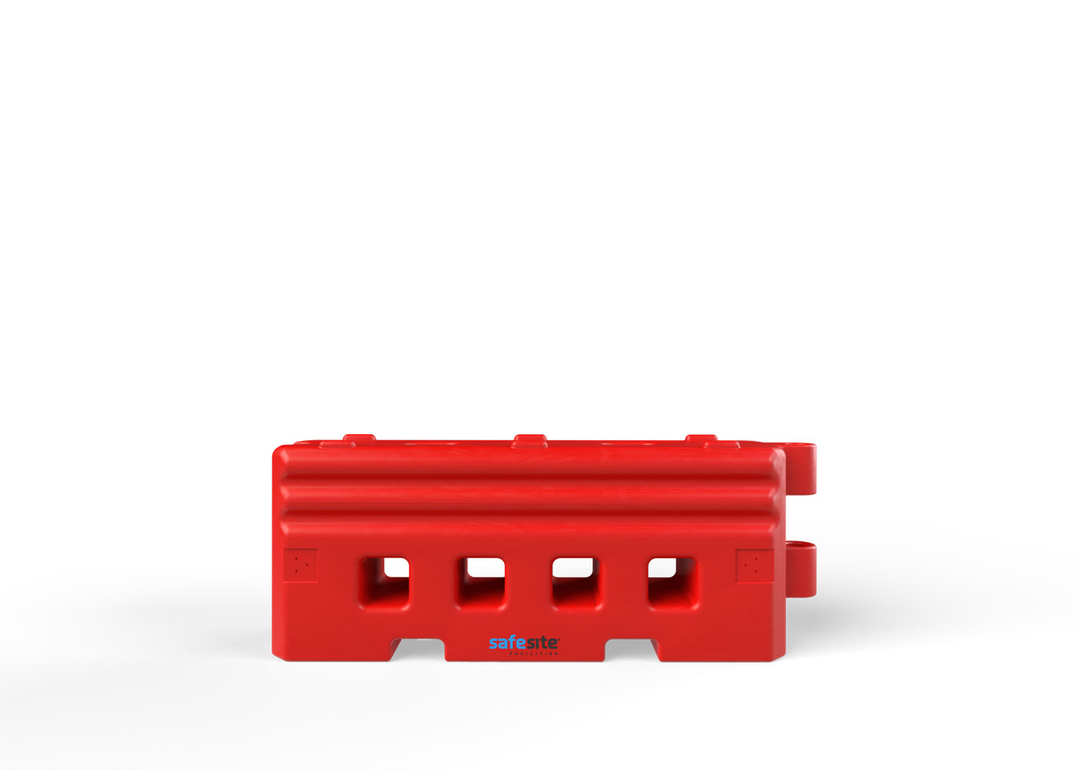

RB22 Barrier Single Unit
Class A/ 78mph

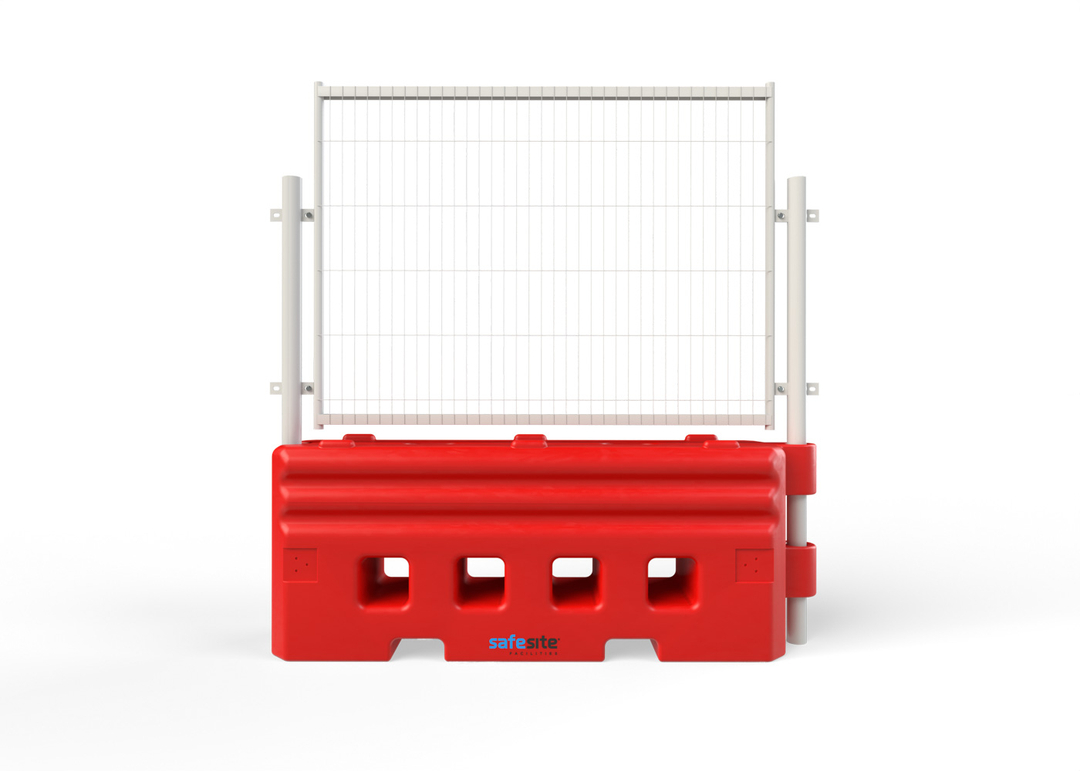

RB22 Barrier + Mesh Fence Panel
Class A/ 60 mph

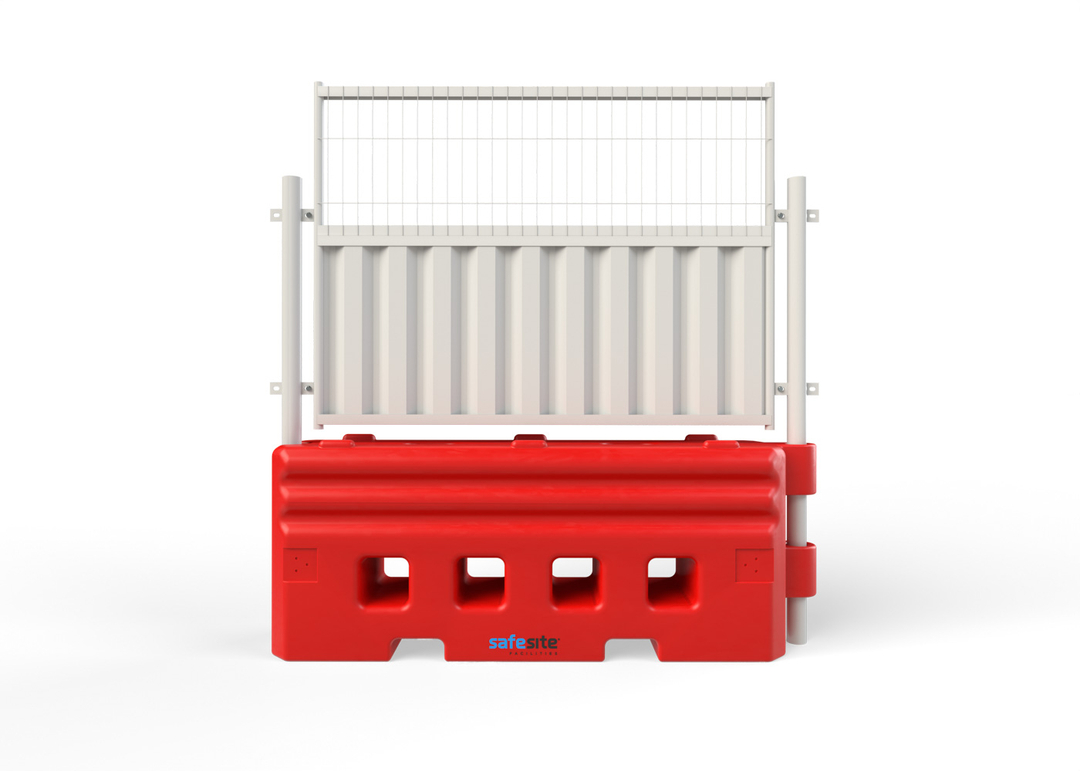

RB22 Barrier + Half Hoarding, Half Mesh Panel
Class B/ 44mph

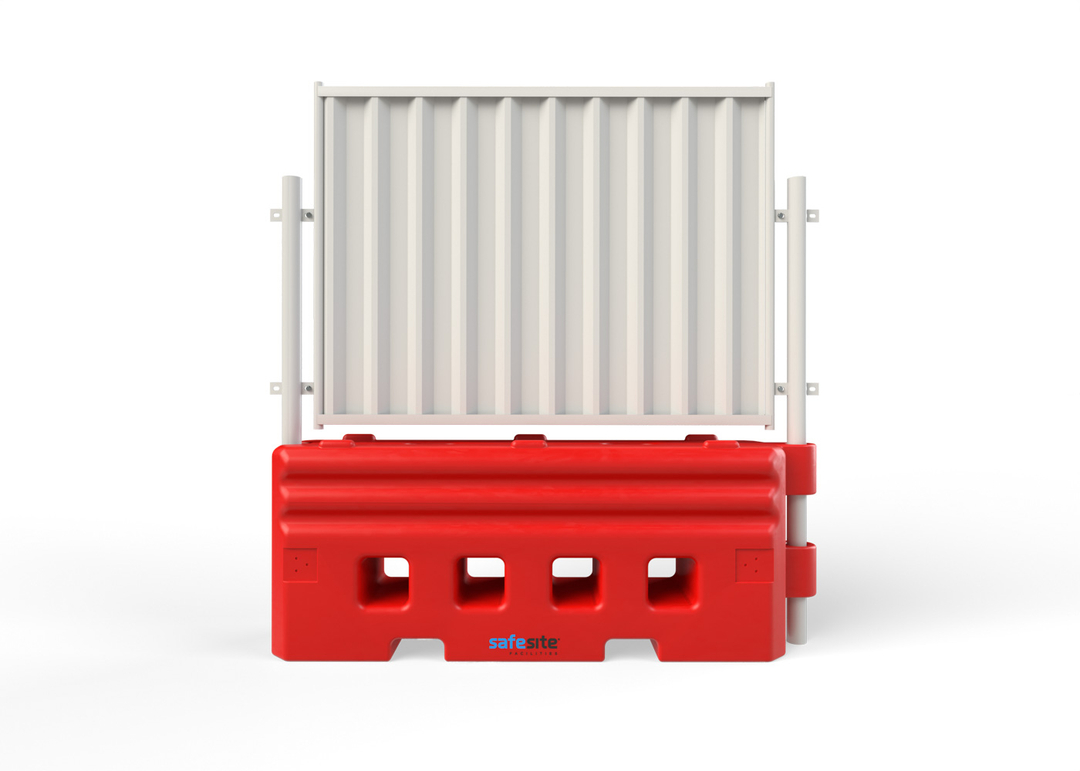

RB22 Barrier + Hoarding Panel

Corner Sections

In addition to its versatility in terms of fence and panel products, the RB22 Barriers can also be used to navigate sweeping corners and 90° angles.

The RB22 barrier’s design and strength when filled, means they’re ideal for use on racetracks and highways as a substantial traffic safety solution.

FIND OUT MORE

End Stops

RB22 Barrier End Stops are designed to provide a secure termination point for RB22 water-filled crash barrier systems.

Constructed from UV-stabilised prime polyethylene, these end stops complete a line of barrier and enhance safety by eliminating exposed edges and created a clean and finished look.

FIND OUT MORE
